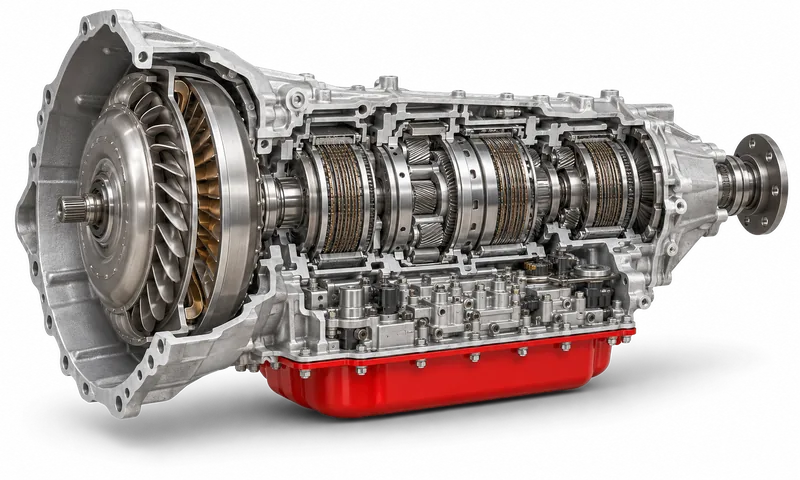

Automatic transmissions (AT)
The method describes the treatment of automatic transmissions (AT) with “XADO revitalizant gel for automatic transmissions” by introducing the gel into the oil filler neck. The treatment is performed without disassembly; the vehicle is then operated in the normal mode.
Units covered by the method
06Method
What is treated
- Serviceable automatic transmissions (AT) that have no parts with 100% wear or macromechanical damage
When treatment is not performed
- ATs having parts with 100% wear or macromechanical damage are not subject to treatment
Preparation
- Check the fluid level in the AT sump (item 6.3.1)
- Shake the can of “XADO revitalizant gel for automatic transmissions” (item 6.3.2)
What is measured before and after
| Parameter | Instrument | How and when |
|---|---|---|
| fluid level in the AT sump | — | checked before the treatment (item 6.3.1); the measuring instrument is not specified in the text of the method |
What the reports on these components showed
- Increased electric power consumption2 cases · median 8 %, 3 values
- Loss of compression6 cases · median 14 %, 11 values
- Elevated vibration6 cases · median 74 %, 2 values
- Increased fuel consumption4 cases · median 12 %, 3 values
- Increased clearances and backlash2 cases
- Elevated operating temperature1 case
- Oil pressure drop4 cases · median 48 %, 2 values
Consolidated register of the evidence base →
Dosage rates
| Compound | Rate | How and when |
|---|---|---|
| XADO revitalizant gel for automatic transmissions | system volume 5–8 l — 1 pc | treatment scheme — single application |
| XADO revitalizant gel for automatic transmissions | system volume 9–12 l — 2 pcs. | treatment scheme — single application |
| XADO revitalizant gel for automatic transmissions | system volume 13–15 l — 3 pcs. | treatment scheme — single application |
Treatment stages
- Check the fluid level in the AT sump
- Shake the can of “XADO revitalizant gel for automatic transmissions”
- Dispense the required amount of “XADO revitalizant gel for automatic transmissions” into the oil filler neck (the dipstick opening) of the AT
- Operate the vehicle in the normal mode50 h of mechanism operation (1500 km of mileage)
After treatment
- Revitalization is considered complete after 50 h of mechanism operation (1500 km of mileage)
- A characteristic sign that revitalization has begun is an improvement in AT operation (reduced noise, smoother gear shifting) from the very first kilometers of mileage after the treatment
Points to watch
- The revitalizant is compatible with all types of automatic transmission fluids (Dexron®, Mercon®, Mopar ATF, CVT), does not enter into chemical reactions with them and does not change their viscosity, friction or other physicochemical properties
Compounds for these units
- Revitalizant gel for gearboxesIndustrial gearboxes, final and central drives, truck and tractor gearboxes, open gear and chain drives.
Reports on this unit
- Zaporozhstal OJSC · 2013↑ 0.05-0.15mm — gearbox tooth thickness, 5.8 → 5.9 and 6.0 → 6.15 mm
- Gavrilenko V.D. Farm Enterprise · 2008↑ 12.5–24% — compression across the cylinders, 25–28 → 31–32 kgf/cm²
- JSC MZKRS — Moscow Jig Boring Machine Plant · 2006↓ 12dB — gearbox noise level, 75 → 63 dB
- JSC “JV Rosava” · 2004↑ 7.7–37.5% — engine compression by cylinder, 16–19.5 → 21–22 kgf/cm²
- SPK Murman fishing collective farm · 2003↑ 16.4% — compression across the cylinders, 9–10 → 11–11.5
- JSC Elektroagregat · 2002↓ 3-4dBA — gearbox noise level, 85–88 → 82–84 dBA
Source: Instructions for the use of XADO revitalizant gels IE-24.6-25612000-005-2008, pages 14–14.
