Home · XADO revitalizant gels — industrial range XADO revitalizant gels — industrial range Compounds by component type. Treatment runs without disassembly and without taking the unit out of service: a calculated dose of gel is added to the standard oil in stages. Consumption rate and number of stages are quoted from instruction IE-24.6-25612000-005-2008.
XADO revitalisation technology →
Compressors · bearings · spindles

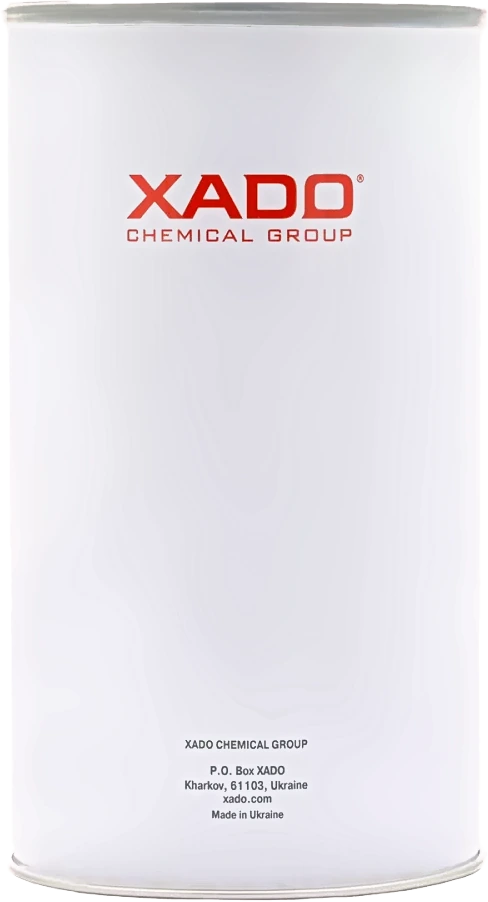

Revitalizant gel for compressors and bearings
Piston, screw and centrifugal compressors; rolling and sliding bearings running in an oil bath; machine-tool spindle units and slideways.
Dose 0.5–3.0 ml per 1 l of the standard oil per stage; slideways — 9.0 ml per 1 l for the whole cycle
Stages 3–8 stages, depending on the component
Gearboxes · transmissions · gear drives
Revitalizant gel for gearboxes
Industrial gearboxes, final and central drives, truck and tractor gearboxes, open gear and chain drives.
Dose 1.8–3.0 ml per 1 l of the standard oil per stage; single dose — 6.0 ml; open gears and lead screws — 9.0 ml per 1 l
Stages 1–5 stages
Hydraulics · pumps · hydraulic motors
Revitalizant gel for hydraulic systems
Hydraulic systems of industrial and special equipment, pumps, motors and valves; gearboxes with oil filtration.
Dose 0.6 ml per 1 l of the working fluid per stage (spindle units — 0.8 ml)
Stages 6 stages (5 for gearboxes with oil filtration and spindle units, 3–4 for new systems)
Diesel engines
Revitalizant gel for diesel engines
Industrial diesel engines — tractor, locomotive, marine and generator sets.
Dose 0.9 ml per 1 l of the standard oil per stage; oil sumps up to 30 l — see table 21.1
Stages 3 stages
Petrol engines
Revitalizant gel for petrol engines
Four-stroke petrol engines with an oil system up to 30 l.
Dose by oil sump volume, table 22.1
Stages 3 stages
Engine cylinders, deep wear
Revitalizant gel for cylinder restoration
Engine cylinders with heavy wear or surface damage deeper than 0.15 mm — applied to the bore before the main treatment.
Dose 25 ml per 1 l of cylinder displacement
Stages single dose, before the main treatment
Fuel systems · injection pumps
Revitalizant gel for fuel systems
Fuel systems of diesel and petrol engines, injection pumps.
Dose by engine displacement, tables 24.1 (diesel) and 24.2 (petrol)
Stages 1 stage
Automatic transmissions
Revitalizant gel for automatic transmissions
Automatic transmissions. Compatible with Dexron, Mercon, Mopar ATF, CVT.
Dose by system volume, table 6.1
Stages single dose
Friction pairs · joints
XADO “Restorative” grease
Bearing assemblies on consistent grease, ball joints and friction pairs — where there is no oil bath to dose a gel into.
Dose complete replacement of the standard grease in the bearings
Stages single dose
Two-stroke engines
XADO revitalizant gel for household and power equipment
Two-stroke engines of household and power equipment — both premix and separate lubrication systems.
Dose one sachet into a full fuel tank or into the oil filler; double the dose when wear is heavy
Stages single dose
Power steering
XADO EX120 for power steering
Power steering and hydraulic equipment of vehicles. Replaces the automotive power-steering gel named in methodology 8.
Dose per the XADO instruction — 1–3 tubes of 9.0 ml per reservoir
Stages 1–3 stages, by degree of wear
Product page →
Preparation before treatment The instruction requires the gel to go into a clean system and the first measurement to be taken on a decarbonised engine. The compounds in this section prepare the system before treatment and do not replace it.
Decarbonising before treatment

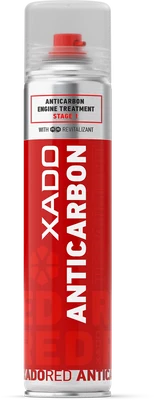

XADO RED ANTICARBON
Decarbonising the piston rings before treatment. Replaces the VERYLUBE “Anticoks” named in the instruction. 320 ml aerosol.
Dose per the XADO instruction — 1–4 tubes of 10.0 ml per cylinder; the actual dose from the aerosol can follows the label instructions.
Stages single dose, before the “before” measurements
Product page →
Oil system flush
XADO RED FLUSH
Flushing the oil system before treatment: the gel is introduced into the flushed system. Replaces the VitaFlush cleaner named in the instruction.
Dose per the XADO instruction — 100.0 ml per 1 l of the standard oil
Stages single dose, before the oil change
Product page →
Diesel fuel system

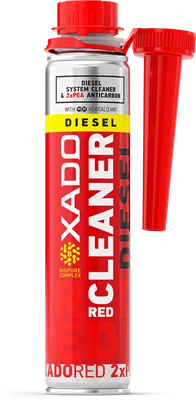

XADO RED CLEANER (diesel)
Diesel fuel system cleaner with a decarbonising effect. Replaces Verylube JET 100 and “DIESEL-LUX”, both discontinued. 250 ml bottle.
Dose per the XADO instruction — 250 ml per 50 l of fuel, or one 10 ml tube per 20 l
Stages single dose, before treating the fuel equipment
Product page →
Petrol fuel system

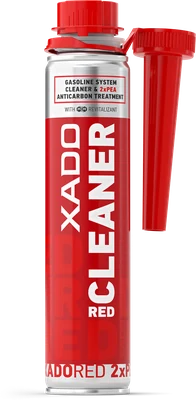

XADO RED CLEANER (petrol)
Petrol fuel system cleaner with a decarbonising effect. Replaces “Benzobak” and Verylube SET 100, both discontinued. 250 ml bottle.
Dose per the XADO instruction — 250 ml per 50 l of petrol, or one 10.0 ml tube per 20 l
Stages single dose, before treating the fuel equipment
Product page →
Ordering and documents
Ordering procedure
The quantity of compound is calculated from the oil bath volume and the number of stages under the component method: consumption rates and volume calculation . Supply is through an XADO dealer; the dealer contact is provided on request via Contacts .
Product documents
Document Content and link TU U 24.6-25612000-002-2002 “XADO revitalizant compounds” specifications for the manufacture of the compounds of the series Instructions for use IE-24.6-25612000-005-2008 24 methods and general provisions: Treatment methods Test protocols of plants 348 documents with scans of the originals: Case catalogue Certificate of conformity on request: Contacts
Names of the technology in test reports of different years — “XADO compound”, “XADO technology”, “revitalizant”, “gel”: explanation on the page About the catalogue documents .
XADO Pilot Testing Programme
ZERO COST PILOT ZERO COST PILOT
Treatment results per test reports
* Treatment results depend on the initial degree of wear.
For enterprises
Chief engineers, mechanical, power and process engineers
Pilot treatment on the enterprise's equipment any oil- or grease-lubricated assemblies: gearboxes, engines, compressors, bearings and others; treatment within the regular operating cycle, without halting production; instrumental measurements before and after: vibration, temperature, power consumption or current; procedure for the specific assembly, dose calculation and support from a XADO engineer. Submit a request
For service companies and partners
Equipment repair and commissioning, vibration diagnostics, technical consultants
Technology deployment programme pilot treatment on the customer's equipment: materials free of charge; 24 treatment procedures by assembly type, dose approved by a XADO engineer; test database for work with the customer: 348 reports, 239 cases from 18 countries; authorised partner status for technology deployment and special terms of cooperation. Become a partner
